Continuous Slot Screens
Commonly referred to as continuous slot screens, this product was originally developed to overcome problems associated with cable tool wells drilled in fine grained, uniform sands. These wells were typically completed in relatively shallow
Commonly referred to as continuous slot screens, this product was originally developed to overcome problems associated with cable tool wells drilled in fine grained, uniform sands. These wells were typically completed in relatively shallow, thin aquifers that were very prolific in terms of water production. Continuous slot screens are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize frictional head loss.

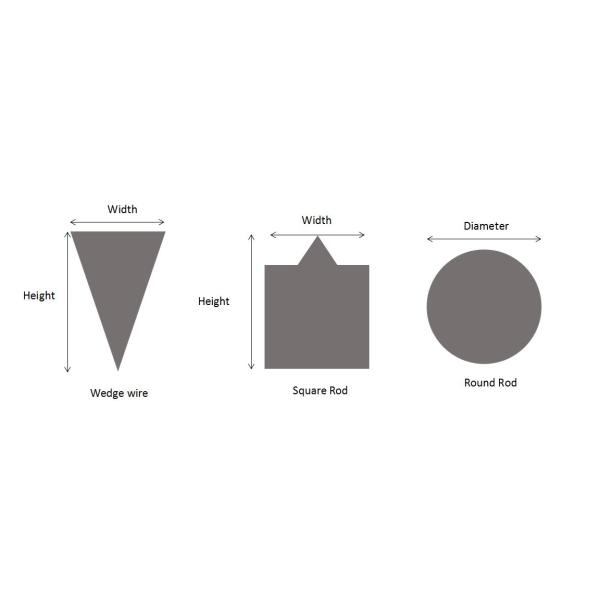

Continuous slot screens are manufactured by wrapping a shaped wire around an internal array of longitudinal rods and are joined by resistance welding. Screen sections are usually from six to twenty feet long. Most continuous slot screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often lead to accelerated corrosion.
Specifications of Non Clogging Continuous Slot Screen For FOTI Water Filtering Screen Pipe
1. Slot size(mm): 0.1~3mm
2. Open area: up to 60%
3. Material: low carbon, low carbon galvanized steel (LCG) steel treated with anticorrosion coating, stainless steel (304, 316L etc)
4. Unit Length up to 6 meters
5. Diameter: ranging from 25 to 800mm
6. End connection: plain beveled ends for butt welding or threaded coupling or flange
Packaging Information
Single with bubble bags and then in wooden case.
Each case is clearly marked with:
Batch number
Date of manufacture
Safe heating & application temperature
| Specifications of Wire Wrap Continuous Slot Well Screens |
| Slot size (mm) | 0.10, 0.15, 0.2, 0.25, 0.30 - 3mm |
| Lengths | 6Mts. & 3Mts, we suggest 5.8m(adapt to the container) |
| Grades | Different grades suitable for tube well depths up to 300ft, 600ft, 900ft , and 1500ft. |
| Material | Low Carbon Galvanized Steel (LCG) and Stainless Steel (SUS304, SUS304L, SUS316, SUS316L) or can be made according to the customers requirements |
| Diameter | ranging from 15 to 275mm |
| End Connection | Plain beveled ends for butt welding or threaded.(We can customize) |
| Open area | up to 60% |
Non Clogging Continuous Slot Screen For FOTI Water Filtering Screen Pipe:
In bulk or with pallet, the detail packing with plastic bag, bubble wrapped, iron cap protect the both ends, the wood strips protect the pipe filter body, wood strips protect the pipe filter body, Any other package required or as customer's requirement.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
---------------------------------------------------------------------------------------------------------------
Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
